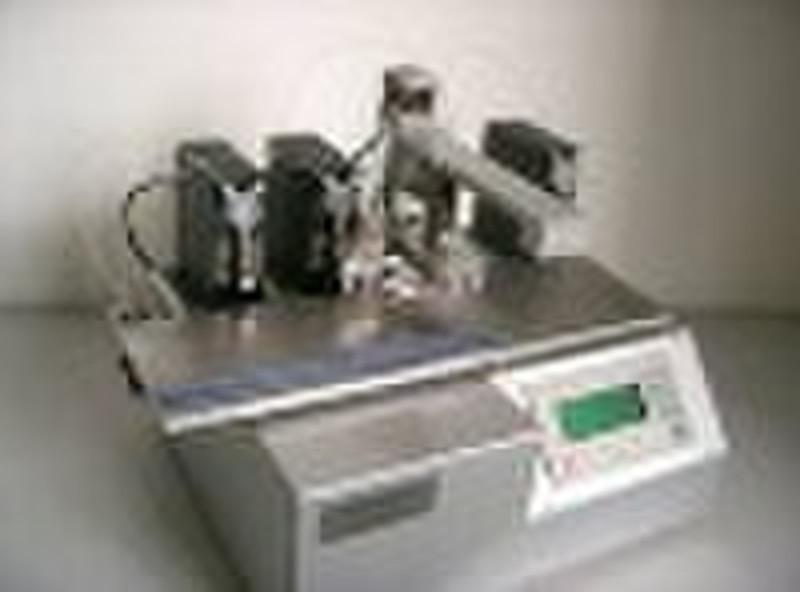

Rapid diagnostic test dispenser

Rapid diagnostic testdispenser HM3010 is designed for study and research of strip production, it is ideal for quantitaive line coating one strip membrane. The platform area is 450 x 140mm. It moves on X axis automatically. The movement on Y axis could be done manually. The Z axis is driven by electric power from top to bottom position while gliding function is activated. Height adjustment could also be done by leadscrew cap. The platform area is 450 x 140mm. It moves on X axis automatically. The movement on Y axis could be done manually. The Z axis is driven by electric power from top to bottom position while gliding function is activated. Height adjustment could also be done by leadscrew cap. Specification: X axis travel: 320mm X Slide speed: 25 Y axis (manual): 100 mmModule size: 42cm Module weight: 28 kg Size Pump positions: Standard Two pumps for C/T Lline, more pumps available Dispensing model: Gliding and spraying as standard, Non touch jet optional.
